Bacteriopolis

Make a home for a colorful community of microorganisms.
This endlessly fascinating living artwork reveals the colorful microorganisms living in the mud and soil underfoot. Over the course of several weeks or more, you’ll see colors appear and shift as the microbial populations grow and change. Why stop at just one? Making several variations allows for interesting comparisons and discoveries.

Bacteriopolis Main
Material Bakteriopolis

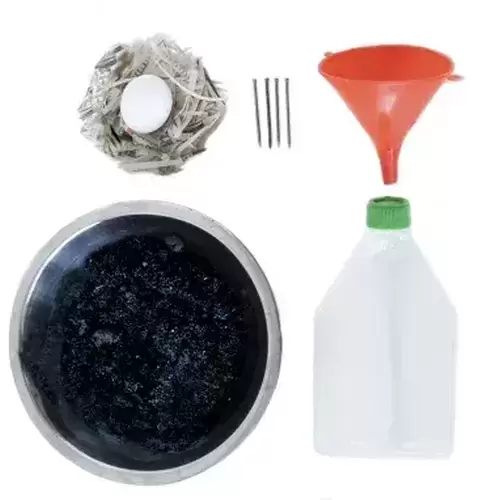

Tools and Materials

  • A clear container, such as a jar, tube, or flask. Note: If your container doesn’t have a lid, you’ll also need plastic wrap.
  • Funnel with wide spout, that will fit the opening of your container
  • Mud (from the bottom of a pond, shore, or other wetland) or dirt (from any local environment), enough to fill your container
  • Basin large enough to hold your mud or dirt
  • Water
  • Suggested: Shredded paper, a raw egg, nails
  • Optional: foil or cardboard and clear tape
  • Optional: grid transparency, colored pencils, paper
  • Optional: UV flashlight

Assembly

  1. Place the funnel on the top of your clear container.
  2. Place the mud or dirt in a basin.
  3. Add a little water to the mud or dirt and mix with your hands (or a spoon), so that the resulting mud is loose enough to be squished through the funnel. Try not to add too much water—you can always add more, but you can’t take it out.
  4. Add nutrients to your mud culture. You can add a handful or so of finely shredded paper, a raw egg, both, or neither. For faster, more colorful results, we suggest adding both.
  5. Fill the clear container with mud by pouring and squishing it through the funnel with your hands. This can make a mess, so you may want to cover your work space with newspapers.
    Optional: Another variation is to add an iron source to your culture by dropping a nail or two into the container, roughly in the middle of the mud.
  6. Put the lid on the container, but keep the lid cracked so that air can enter the container. If your container doesn’t have a lid, cover the mouth loosely with plastic wrap.
  7. Optional: To investigate the effect that light has on your culture, cut a small piece out of foil or cardboard and tape it to the outside of the container.
  8. Place your container in a sunny window (with the foil side facing the window, if you used it), and let it sit undisturbed for about 24 hours.
  9. After 24 hours, the mud should have settled to the bottom of the container, with a layer of water sitting on top. If there is more than 1 or 2 cm of water above the mud, pour a bit off until there is only 1-2 cm of water. If there is less than 1-2 cm of water, add a little tap water to the top of the container.

To Do and Notice

Observe your mud periodically, watching for changes over days, weeks, months, or even years. What patterns do you notice over time? When and where do various colors appear or disappear? Does the side of the column facing the window appear different from the side facing away? If you used foil or cardboard, peek underneath: does the covered part look different than the uncovered part?

What evidence do you have that the colors you see are living things?

You may want to draw and measure the way that different colored patches grow, shrink, and change over time—a grid printed on a transparency and colored pencils can help you to capture this information.

To keep your culture growing, just add a little water to the top of the container if you notice it has dried out.

What's Going On?

The colorful patches that grow in your container of mud are actually clusters of diverse species of bacteria that live naturally in the soil. Each different color represents a group of microbial species. Allowed to grow undisturbed, these bacteria form colonies large enough to see by eye.

Another name for your container of mud is a Winogradsky column, named for the scientist that came up with this way of growing and studying soil microorganisms. A Winogradsky column captures the processes that are continually happening in soil and mud in nature, a self-contained, dynamic ecosystem in which energy flows and matter cycles between different metabolically diverse organisms.

The green bacteria in your culture make their food like plants—they get their energy from sunlight by photosynthesis, and they get their matter (that is, carbon) from the air in the form of carbon dioxide. If your column is in a sunny window, you might have encouraged the growth of lots of these photosynthesizing species, and the side of the column that got less sun likely had fewer.

Other bacteria in your column are more similar to animals and fungi—they get their energy and matter by metabolizing carbon compounds made by other organisms (like plants, animals, fungi, or other microbes). This is similar to the way that you get energy and matter by digesting and breaking down the molecules in the food you eat. If you added shredded paper to your column, which is made largely of cellulose, a carbon compound made by plants, you likely encouraged the growth of some of these species, which tend to appear grey.

The egg or nails you might have added to your column represent another type of energy source that can only be used by certain bacterial species. These organisms get their energy through reactions they conduct with sulfur or iron, minerals that are present in the egg and nails, respectively. Iron-oxidizing species can often be identified by the reddish brown color of their colonies—you may have noticed that iron rusts to a similar color.

Each of these different metabolic reactions produces different waste byproducts. And each byproduct may in turn be used by another organism to survive. For example, photosynthetic cyanobacteria produce oxygen gas as a byproduct of photosynthesis. This oxygen gas is crucial for the survival of aerobic bacteria—as well as for animals like us. In fact, we have photosynthetic cyanobacteria to thank for creating the relatively oxygen-rich atmosphere of our planet several billion years ago, without which we humans could never have evolved.

Although your column might start as a uniform mass of mud, over time it develops gradients and microenvironments with different resources, such as oxygen and light. Oxygen is rich at the top of the column, but is nearly absent towards the bottom of the column, where anaerobic (non-oxygen-using or producing) species are usually found. The side of the column facing the window or other light source will tend to have more photosynthetic species than the side of the column receiving less light, which will be richer in heterotrophs, or non-light-using species. Each species occupies a particular niche or area of the column, depending on their energy and matter needs. The waste products of each species create new niches for other species to grow in.

In this way, matter recycles within and energy flows through the ecosystem of the column, and with continual inputs of light energy, these organisms can continue using their diverse metabolic processes to live, change, and grow for many years.
